Double your flight time with the SA08
This battery uses the latest and greatest silicone anode technology from Amprius, which offer energy densities as high as 330Wh/kg compared to LiPo's 150Wh/Kg and Lithium Ion's 230Wh/Kg, which means it can add up to 120% more flight time compared to a LiPo battery and up to 45% more flight time than a standard Lithium Ion battery. Please be mindful of the discharge rate and consider airflow over the battery if operating at high output. It is not recommended to exceed 44A for an extended period.

Physical
- Total cell count: 8
- Cell type: Amprius SA08
- Configuration: 4S2P aka 4 sets in series (4S) of 2 cell(s) (2P) in parallel
- Weight: 920g / 32.5oz
- Length: 66mm / 2.6in
- Width: 53mm / 2.1in
- Height: 165mm / 6.5in

Connectors
- Discharge Connector: Please select above
- Discharge Wire Length (pack to connector end): 150mm / 5.9in
- Balance Connector: JST-XH
- Balance Wire Length (pack to connector end): 80mm / 3.1in

Energy
- Voltage Range: 10.0V - 16.8V, Nominal 13.6V
- Capacity: 22.1Ah / 301Wh

Charging
- Use a 4S LiPo setting to charge up to 16.8v
- Maximum recommended charge rate: 22.1A (1.0C)

Discharge
- Burst: 173A / 8C / 2,350W (less than 30 seconds)
- Maximum Continuous: 44A / 2C / 598W (Airflow dependent)

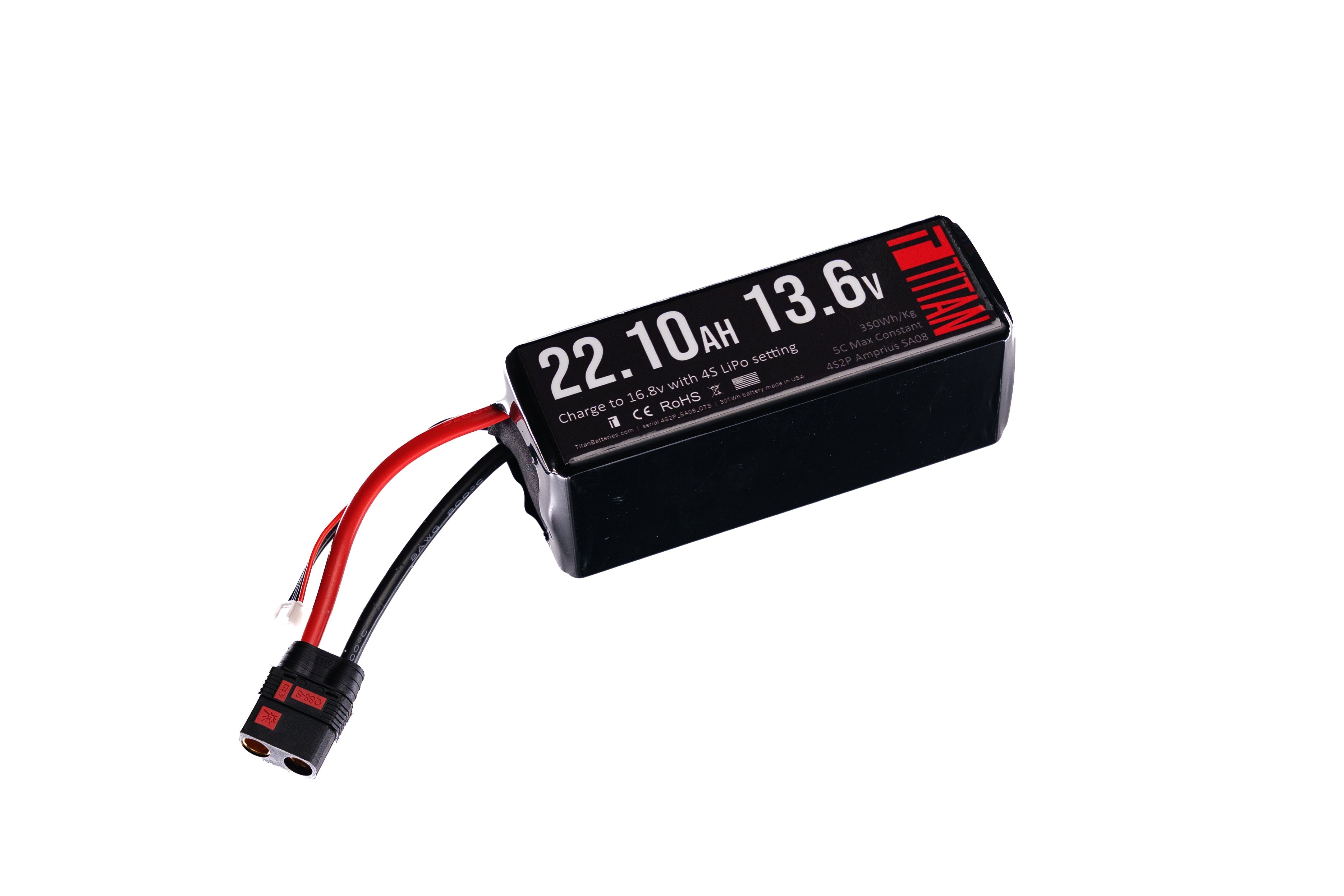

4S 13.6v 22.1Ah Battery using SA08 cell
